Efficient Under-Slab Insulation for Residential & Commercial Builds

Maximize your project’s energy efficiency with the SuperPex Panel, an advanced interlocking hydronic floor panel designed to eliminate heat loss and streamline installation. Since roughly 25% of a building’s heat can escape through the floor, proper insulation is critical. The SuperPex system provides a high-density expanded polystyrene (EPS) barrier that ensures your radiant heating system performs at its peak.

Precision Engineering for Faster Installation

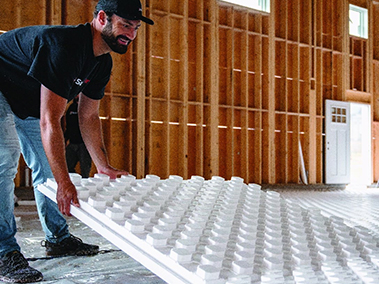

The SuperPex Panel is designed to reduce labor costs and eliminate the frustrations of traditional radiant floor setups.

• Secure "Walk-In" Locking: Our unique mushroom-shaped pucks are precision-engineered to lock PEX tubing firmly in place7. Contractors can simply walk the tubing into the panel, removing the need for tedious stapling or zip-tying.

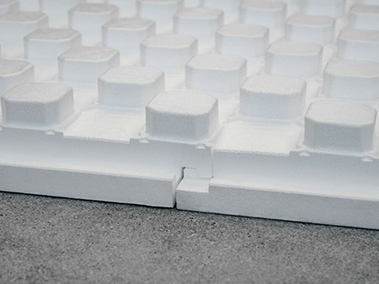

• Seamless Interlocking Design: Each 4' x 4' panel features a shiplap edge on all four sides. This creates a continuous, tight-fitting thermal break across the entire floor, preventing "ghosting" or cold spots.
• Versatile Pipe Compatibility: The specialized cone-shaped pucks accommodate multiple PEX sizes, including 3/8", 1/2", 5/8" and 3/4".

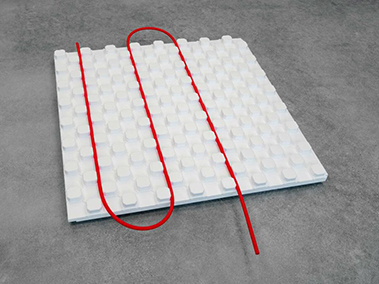

• Enhanced Heat Distribution: Integrated bridges between the pucks lift the tubing slightly, allowing concrete to flow entirely around the pipe for more uniform thermal conductivity.

Unmatched Performance & Customization

At Green Harbor Building Systems, we provide the specific density and thickness your engineering specs require.

FEATURE

SPECIFICAITON & BENEFITS

Available Thicknesses

Choose from 2", 2.5", 3", 3.5", or 4" panels to meet local code.

Superior R-Values

Achieve thermal resistance ranging from R10 up to R18.

Compression Strength

Available in 16, 25, 30, and 40 PSI to handle heavy commercial loads.

Flexible Layouts

Supports multi-directional PEX placement for complex room geometries.
